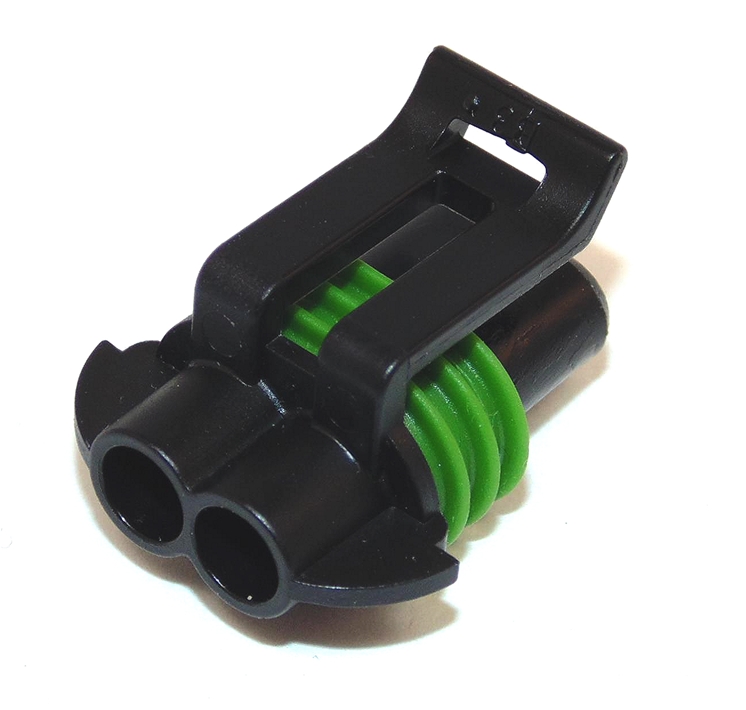

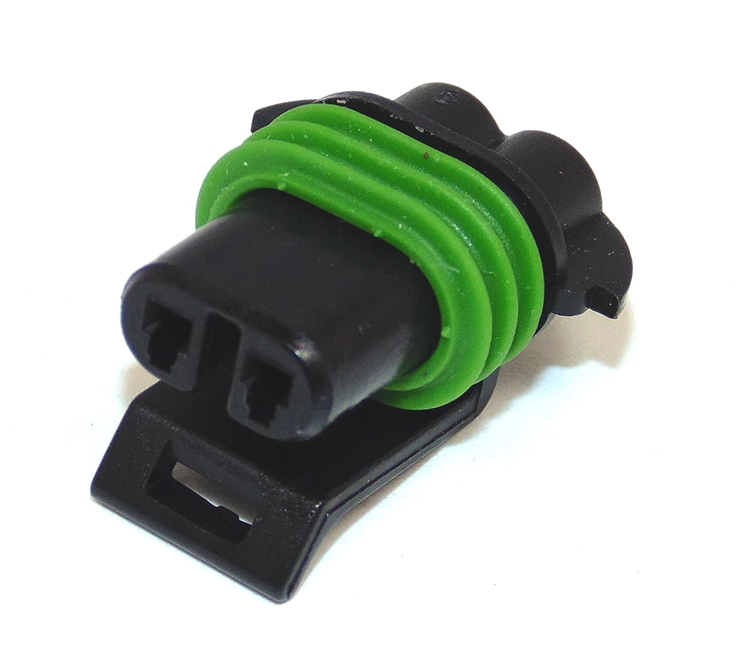

2 Way Delphi Metri-Pack 150 Series Black Female

2 Way Delphi Metri-Pack 150 Series Black Female
Zoom  Zoom
 2 Way Delphi Metri-Pack 150 Series Black Female2 Way Delphi Metri-Pack 150 Series Black Female
Our Price:  £1.71(Exc. 20% VAT)

Model:  FC45-10737794-H
Part Number:  17037794
Brand:  Delphi (Aptiv)
Alternative Part Number:  12052641
Product Range:  Metri-Pack 150 Series
Number of Positions:  2
Number of Rows:  1
Gender (terminal):  Female
Colour:  Black
Sealed/Unsealed:  Sealed
Longest Dimension (connector face):  12.6mm
Terminal Shape:  Socket
Housing Material:  PA6, PA66, PBT
Maximum Operating Temperature:  125⁰C
Minimum Operating Temperature:  -40⁰C

Availability:

No stock, discontinued

No stock, discontinued



Pricing

1-24 £1.71
25-49 £1.54
50-99 £1.45
100+ £1.37













Documents:  Drawing


.
