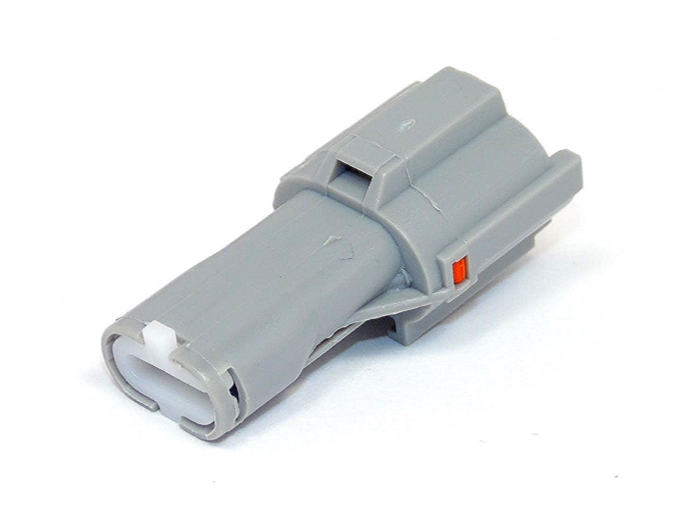

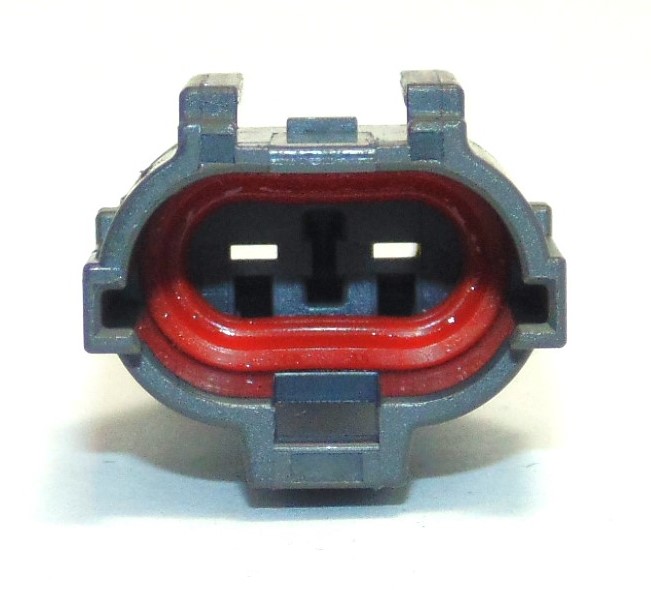

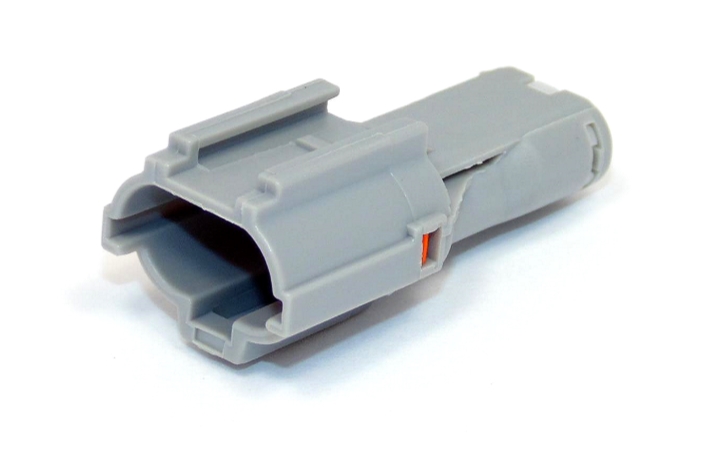

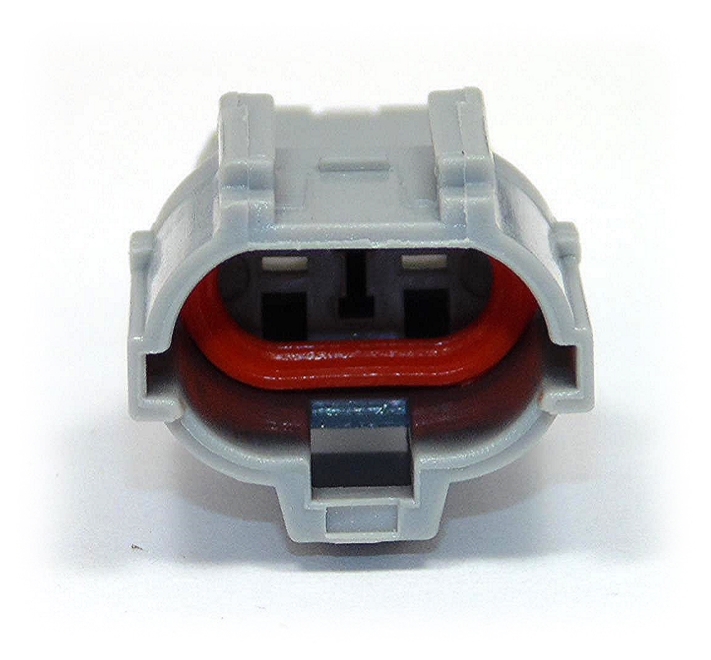

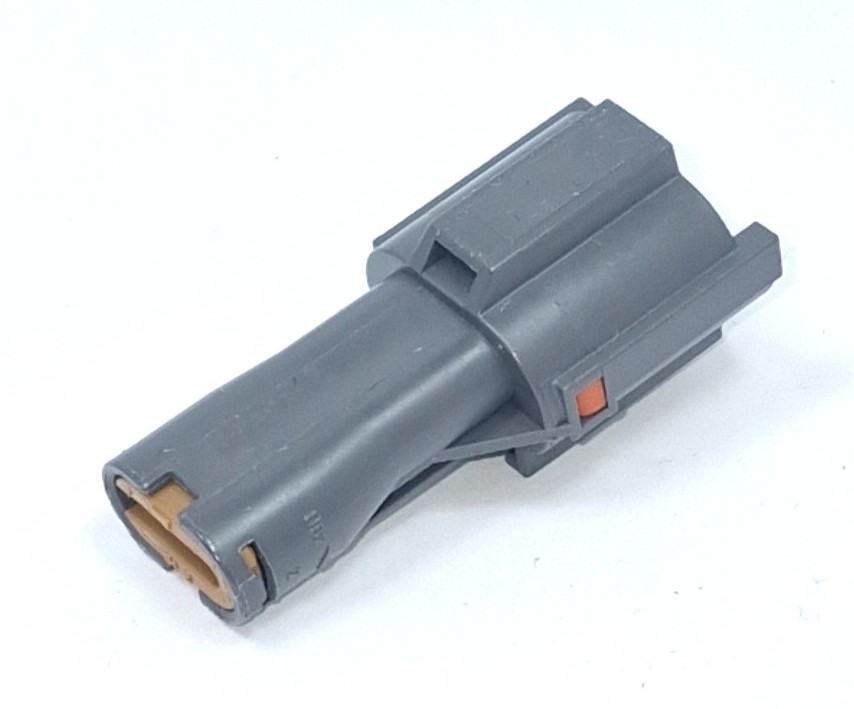

2 Way Yazaki Sealed Connector Kit Male, inc. terminals and seals

Model:  DA01-7222142440-K
Part Number:  7222-1424-40
Brand:  Yazaki
Product Range:  SWP
Number of Positions:  2
Number of Rows:  1
Gender (terminal):  Male
Colour:  Grey
Sealed/Unsealed:  Sealed
Longest Dimension (connector face):  19.5mm
Terminal Shape:  Flat

Availability:

50 in stock

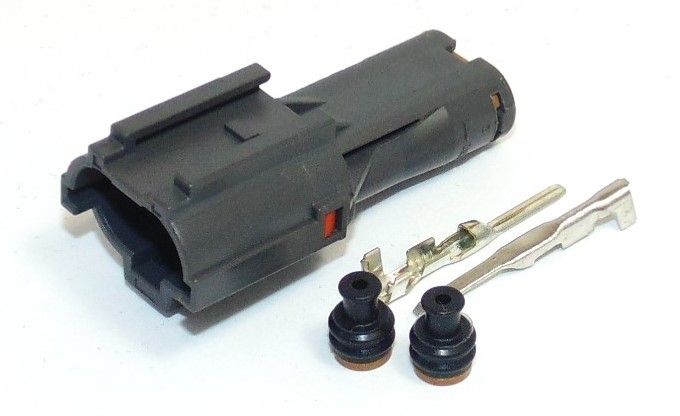

Included in the price:

	2 Way Yazaki Sealed Connector HSG

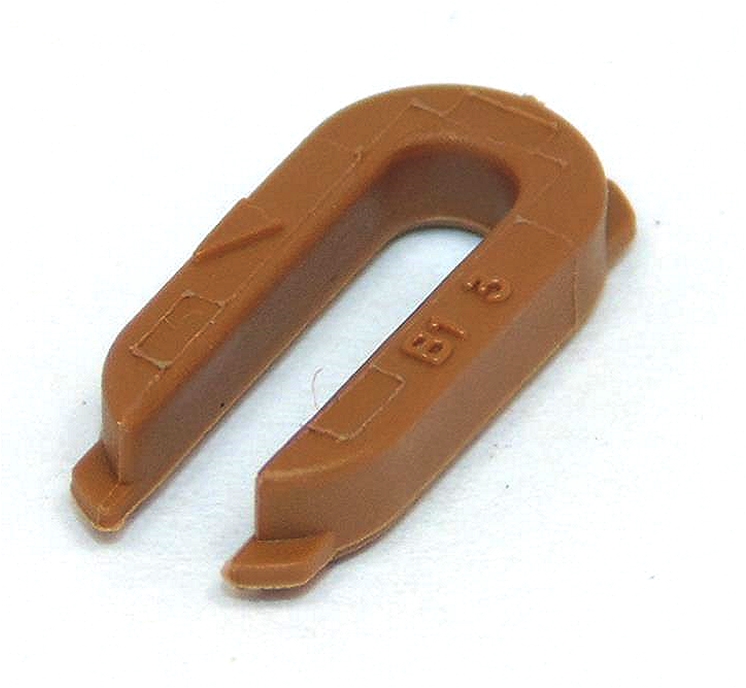

	2 Way Yazaki SWP Connectors Retaining Clip Brown
	Yazaki SWP Male Contact 0.3-0.85mm² Qty:  2
	Wire Seal Yazaki SWP Black 0.3-0.85mm² Qty:  2

Documents:  Drawing
