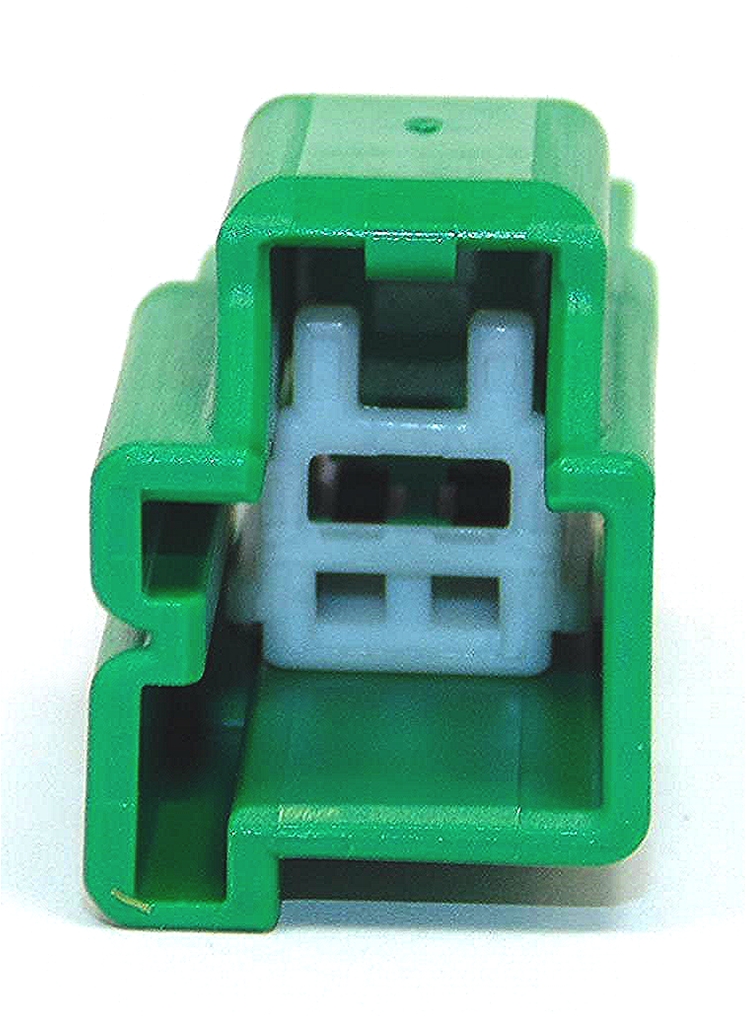

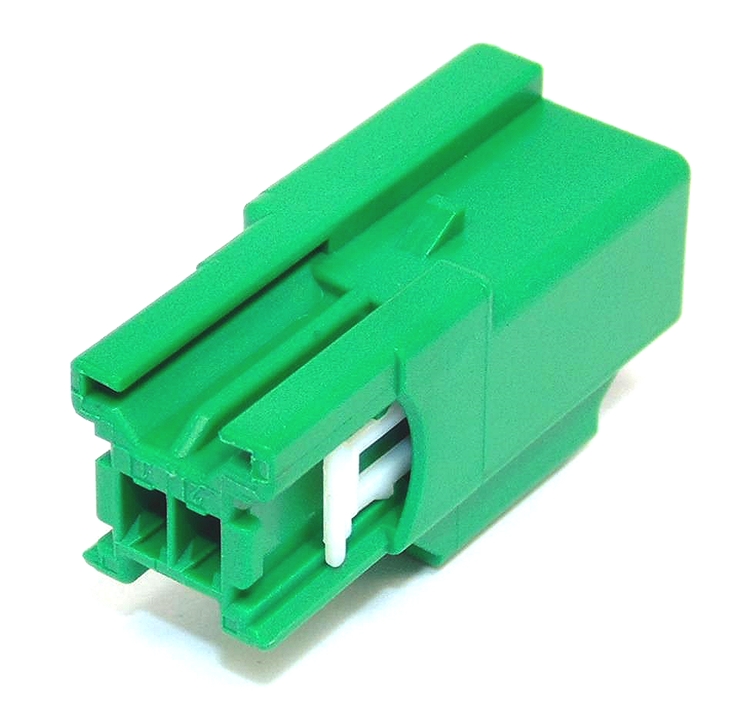

2 Way YAZAKI YES Kaizen Connector 1.5mm(060) Male Green

2 Way YAZAKI YES Kaizen Connector 1.5mm(060) Male Green
Zoom  Zoom
2 Way YAZAKI YES Kaizen Connector 1.5mm(060) Male Green2 Way YAZAKI YES Kaizen Connector 1.5mm(060) Male Green2 Way YAZAKI YES Kaizen Connector 1.5mm(060) Male Green
Our Price:  £2.70(Exc. 20% VAT)
–+

Model:  FG96-7282644460-H
Part Number:  7282-6444-60
Brand:  Yazaki
Product Range:  YES/YESC Kaizen
Number of Positions:  2
Number of Rows:  1
Gender (terminal):  Male
Colour:  Green
Sealed/Unsealed:  Unsealed
Longest Dimension (connector face):  13.7mm
Terminal Shape:  Flat
Housing Material:  PBT
Maximum Operating Temperature:  100⁰C
Minimum Operating Temperature:  -40⁰C
Tab Width:  1.5mm(060)

Availability:

32 in stock

32 in stock

Share



Pricing
1-49 £2.70
50-99 £2.43
100-499 £2.30
500+ £2.03













Documents:  Drawing

.
