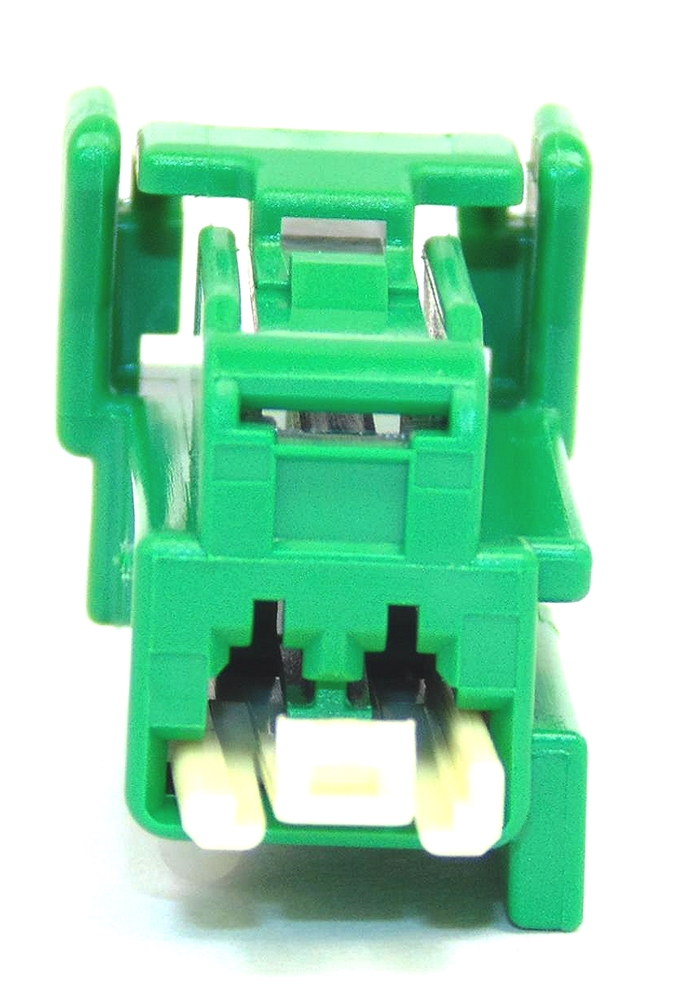

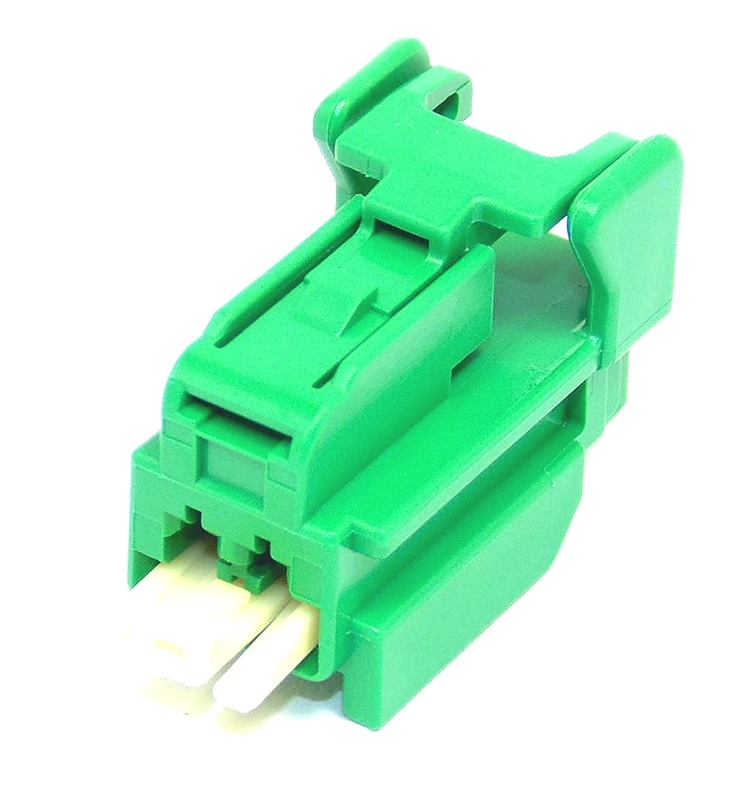

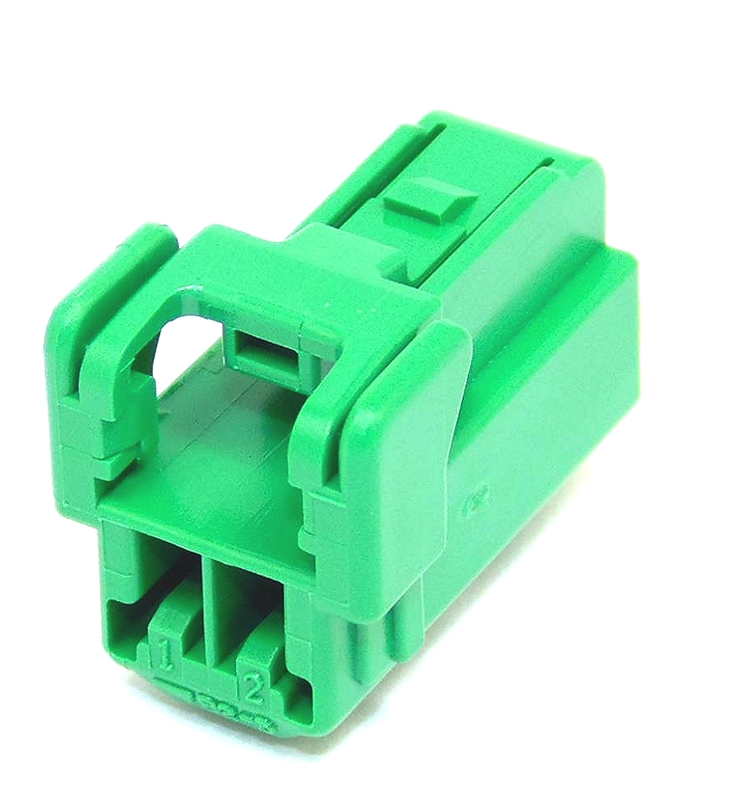

2 Way YAZAKI YES/YESC Connector 1.5mm(060) Female Green

Model:  FH04-7283568060-H
Part Number:  7283-5680-60
Brand:  Yazaki
Product Range:  YES/YESC Kaizen
Number of Positions:  2
Number of Rows:  1
Gender (terminal):  Female
Colour:  Green
Sealed/Unsealed:  Unsealed
Longest Dimension (connector face):  12.2mm
Terminal Shape:  Receptical
Housing Material:  Heat-resistance Nylon
Maximum Operating Temperature:  100⁰C
Minimum Operating Temperature:  -40⁰C
Tab Width:  1.5mm(060)

Availability:

No stock, discontinued

Documents:  Drawing
