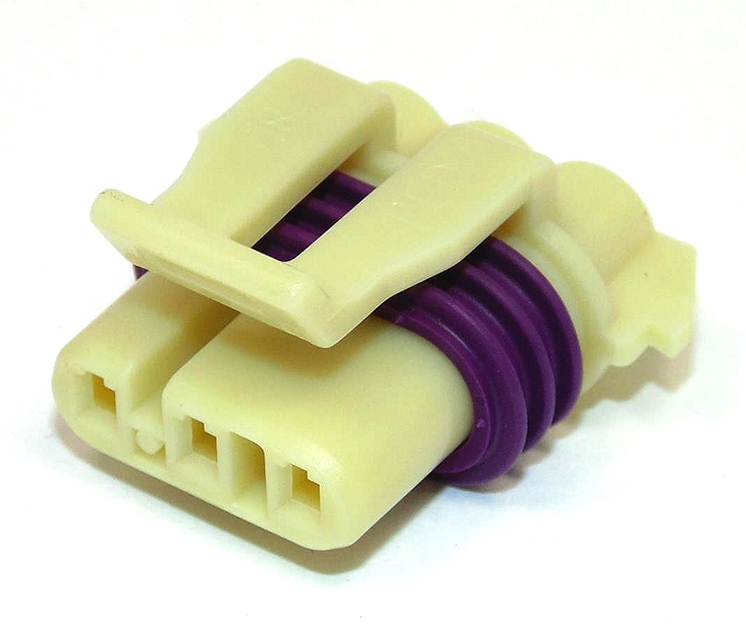

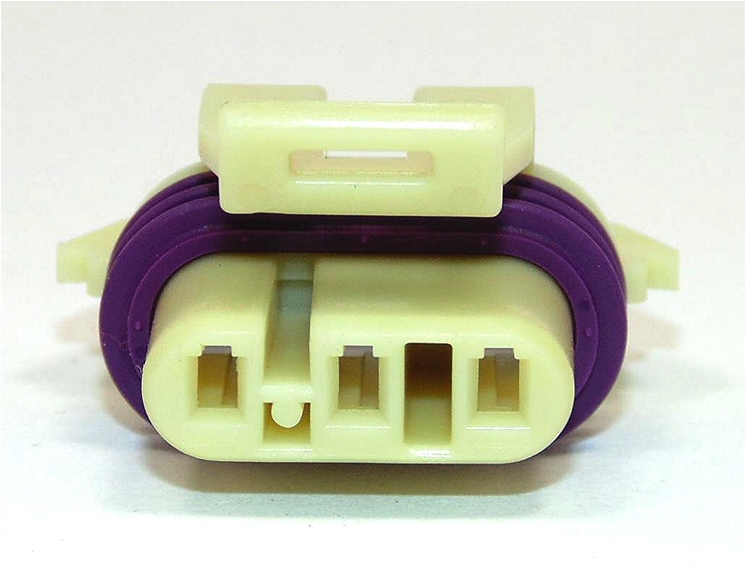

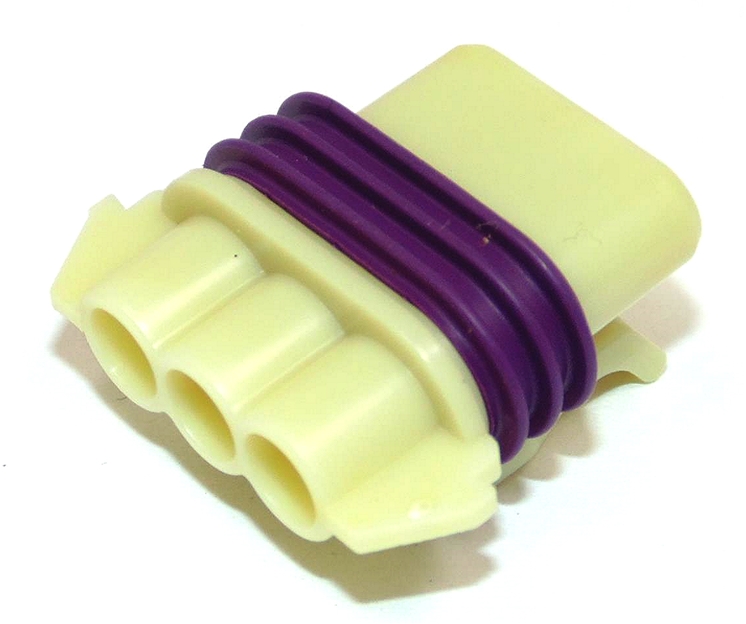

3 Way Delphi Metri-Pack 150 Sealed Series Female Natural

3 Way Delphi Metri-Pack 150 Sealed Series Female Natural
Zoom  Zoom
3 Way Delphi Metri-Pack 150 Sealed Series Female Natural3 Way Delphi Metri-Pack 150 Sealed Series Female Natural3 Way Delphi Metri-Pack 150 Sealed Series Female Natural
Our Price:  £1.75(Exc. 20% VAT)
+

Model:  FI36-15324165-H
Part Number:  15324165
Brand:  Delphi (Aptiv)
Product Range:  Metri-Pack 150 Series
Number of Positions:  3
Number of Rows:  1
Gender (terminal):  Female
Colour:  Natural
Sealed/Unsealed:  Sealed
Longest Dimension (connector face):  18.6mm
Terminal Shape:  Receptical
Housing Material:  PA
Current Rating:  11A - 15A
Maximum Operating Temperature:  125⁰C
Minimum Operating Temperature:  -40⁰C

Availability:

696 in stock

696 in stock



Pricing

1-99 £1.75
100-499 £1.40
500-999 £1.23
1000+ £0.88













Documents:   Drawing


.
