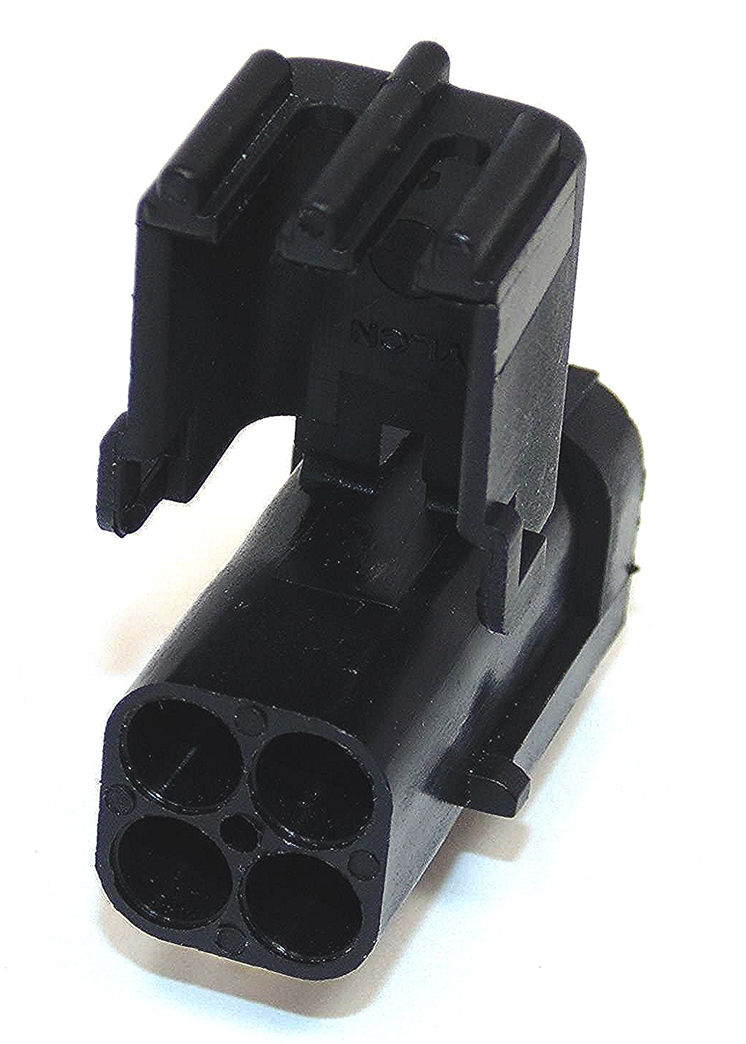

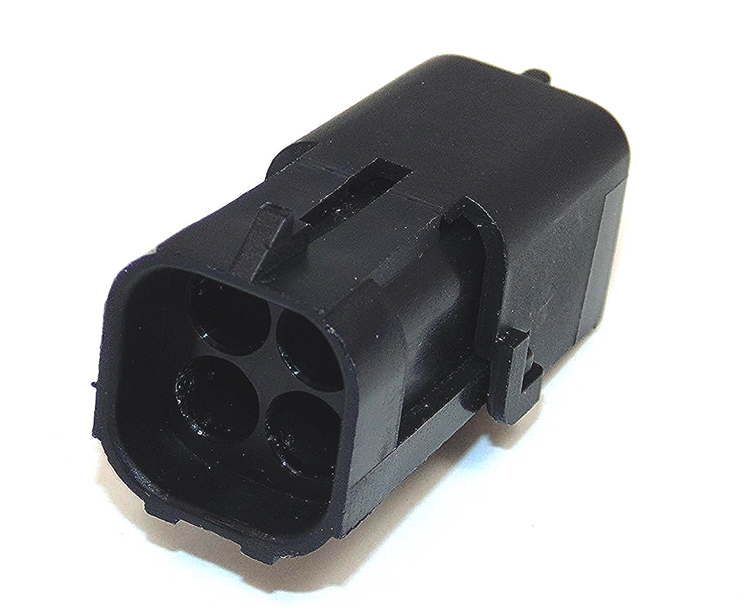

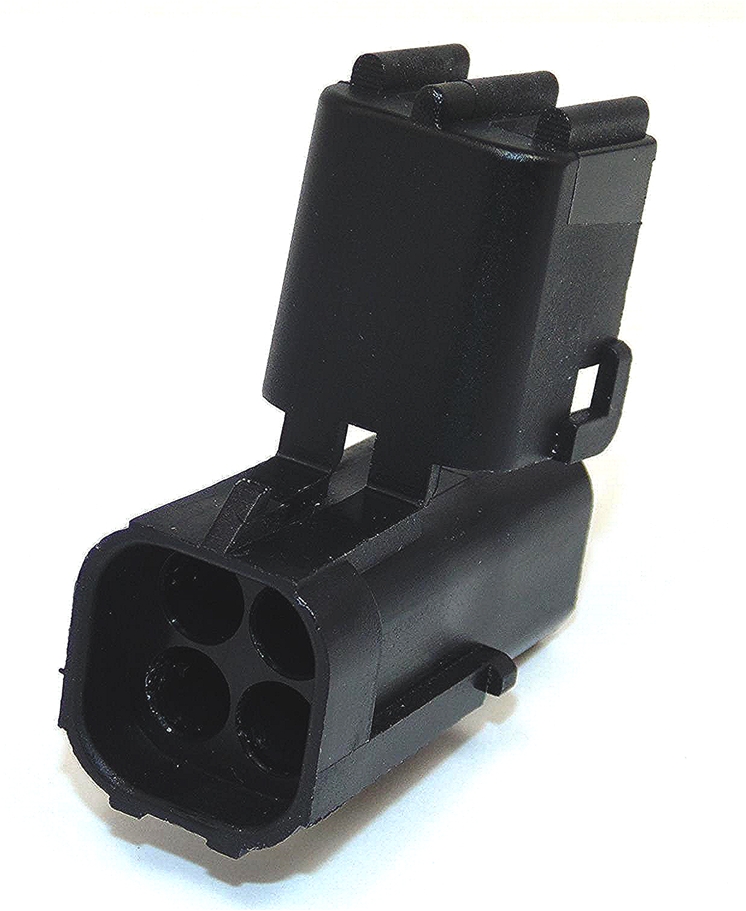

4 Way Delphi Weather-Pack Connector Male Black

4 Way Delphi Weather-Pack Connector Male Black
Zoom  Zoom
4 Way Delphi Weather-Pack Connector Male Black4 Way Delphi Weather-Pack Connector Male Black4 Way Delphi Weather-Pack Connector Male Black
Our Price:  £0.98(Exc. 20% VAT)
+

Model:  FB29-12015024-H
Part Number:  12015024
Brand:  Delphi (Aptiv)
Product Range:  Weather-Pack
Number of Positions:  4
Number of Rows:  2
Gender (terminal):  Male
Colour:  Black
Sealed/Unsealed:  Sealed
Longest Dimension (connector face):  20.6mm
Terminal Shape:  Socket
Current Rating:  20A
Maximum Operating Temperature:  125⁰C
Minimum Operating Temperature:  -40⁰C

Availability:

92 in stock

92 in stock



Pricing

1-49 £0.98
50-99 £0.78
100-499 £0.69
500+ £0.49













Documents:  Drawing


.
