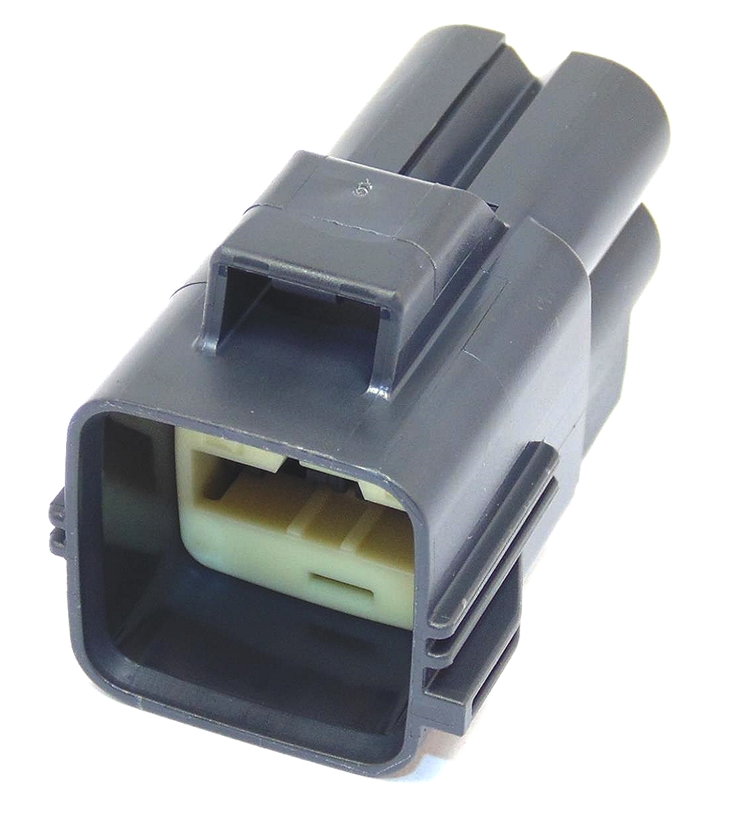

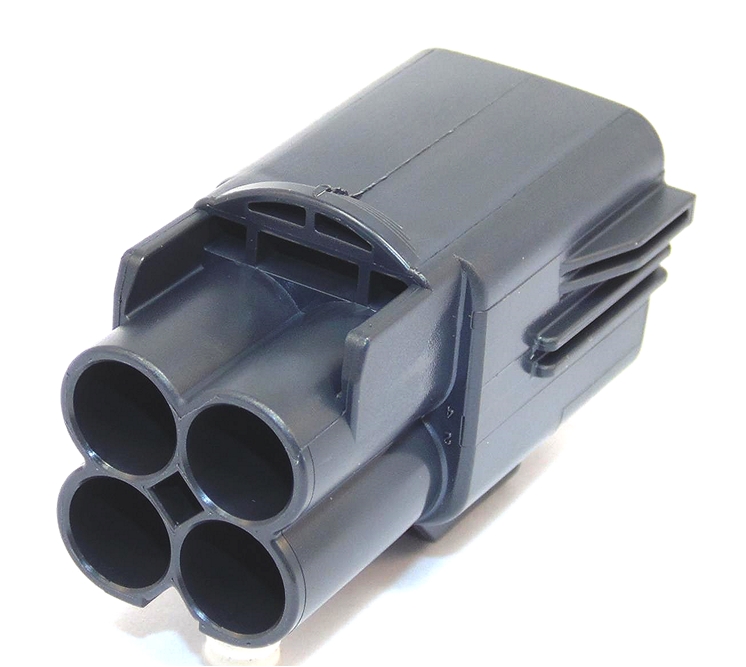

4 Way YAZAKI YES/YESC Connector 6.3mm (250) Male Dark Grey

4 Way YAZAKI YES/YESC Connector 6.3mm (250) Male Dark Grey
Zoom  Zoom
 4 Way YAZAKI YES/YESC Connector 6.3mm (250) Male Dark Grey4 Way YAZAKI YES/YESC Connector 6.3mm (250) Male Dark Grey
Our Price:  £3.49(Exc. 20% VAT)
–+

Model:  FH16-7282559510-H
Part Number:  7282-5595-10
Brand:  Yazaki
Product Range:  YES/YESC Kaizen
Number of Positions:  4
Number of Rows:  2
Gender (terminal):  Male
Colour:  Dark Grey
Sealed/Unsealed:  Sealed
Longest Dimension (connector face):  30.1mm
Terminal Shape:  Flat
Housing Material:  Heat-resistance Nylon
Current Rating:  30A
Maximum Operating Temperature:  100⁰C
Minimum Operating Temperature:  -40⁰C
Tab Width:  6.3mm(250)

Availability:

44 in stock

44 in stock

Share



Pricing
1-49 £3.49
50-99 £2.79
100-499 £2.44
500+ £2.09













Documents:  Drawing

.
