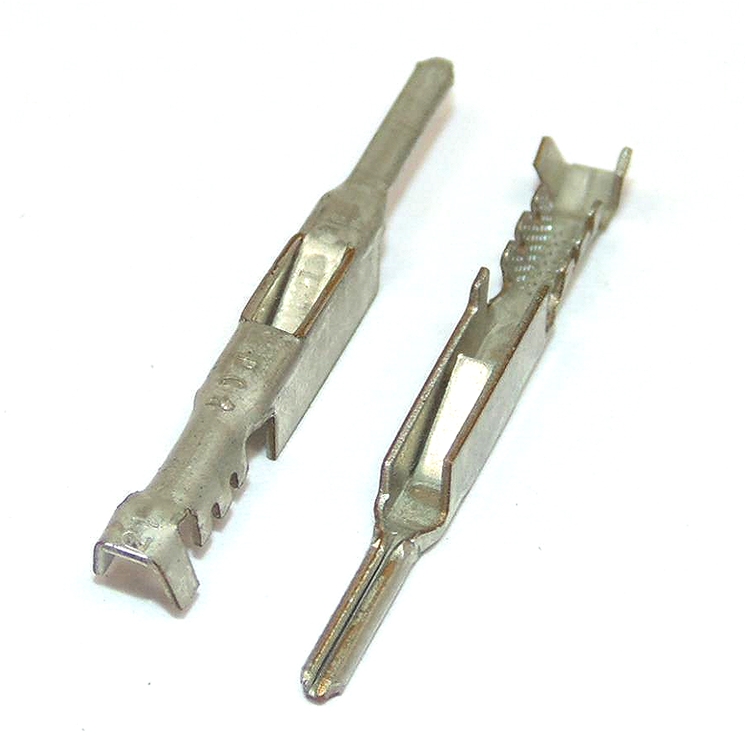

Delphi Metri-Pack 150 Male 0.35-0.50mm²

Model:  FI58-12059894-T
Part Number:  12059894
Brand:  Delphi (Aptiv)
Product Range:  Metri-Pack 150
Gender:  Male
Wire Size (min):  0.35mm²
Wire Size (max):  0.50mm²
Contact Material:  Brass
Contact Plating:  Tin
Termination Method:  Crimp
Terminal Shape:  Flat
Current Rating:  14A
Maximum Operating Temperature:  125⁰C
Minimum Operating Temperature:  -40⁰C
Wire Insulation Diameter:  1.47-2.4mm

Availability:

6,880 in stock

Documents:  Drawing
