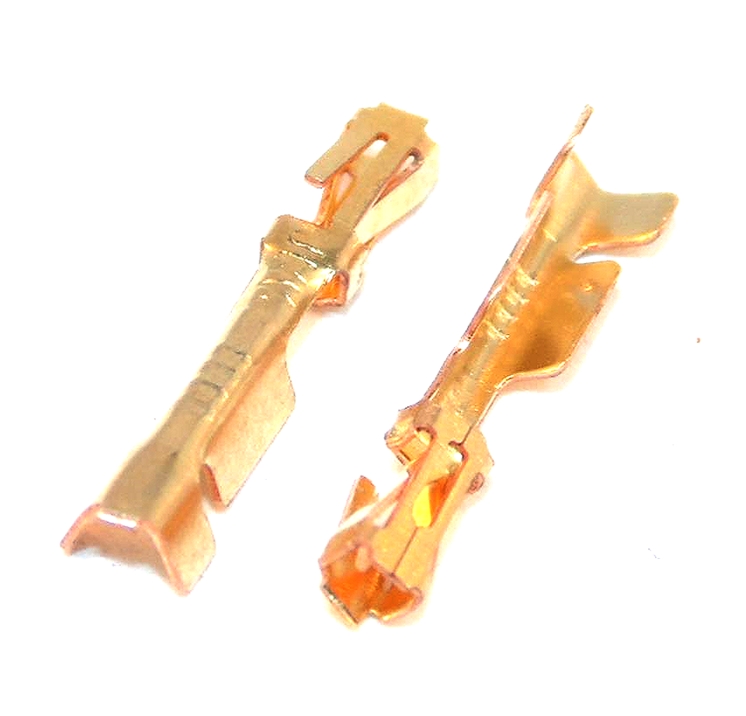

TE Connectivity Amp Modu IV/V 0.64mm(.025) Female 0.2-0.6mm²

Model:  FQ29-1673006-T
Part Number:  167300-6
Brand:  TE Connectivity
Product Range:  AMP MODU IV/V
Gender:  Female
Wire Size (min):  0.2mm²
Wire Size (max):  0.6mm²
Wire Size (awg):  24-20
Contact Material:  Bronze
Contact Plating:  Gold
Termination Method:  Crimp
Terminal Shape:  Socket
Current Rating:  3A
Maximum Operating Temperature:  105⁰C
Minimum Operating Temperature:  -65⁰C
Tab Width:  0.64mm(025)

Availability:

295 in stock

Documents:   Datasheet
