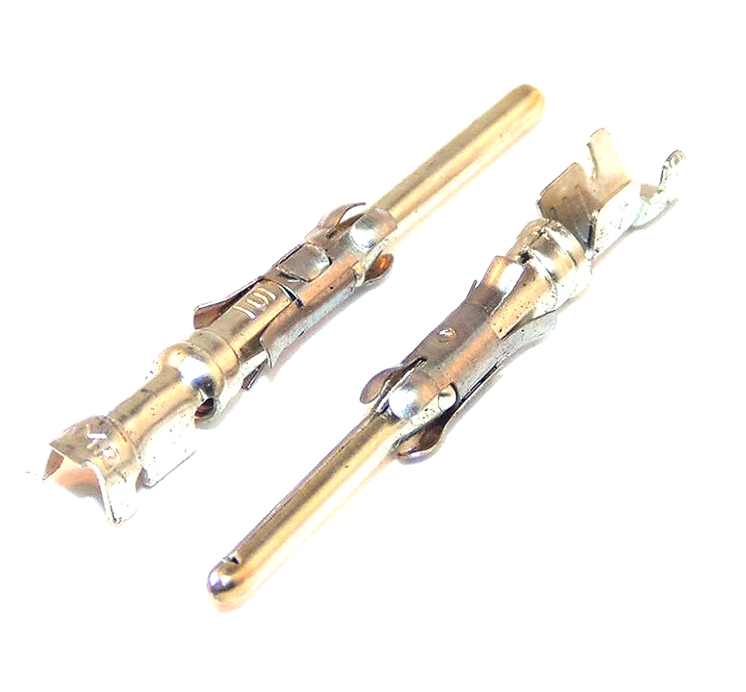

TE Connectivity AMP Type III+ 18-16 Awg Male

Model:  FQ04-1660988-T
Part Number:  1-66098-8
Brand:  TE Connectivity
Product Range:  Type III+
Gender:  Male
Wire Size (min):  0.8mm²
Wire Size (max):  1.4mm²
Wire Size (awg):  18-16awg
Contact Material:  Brass
Contact Plating:  Nickel
Termination Method:  Crimp
Terminal Shape:  Pin
Current Rating:  13A
Maximum Operating Temperature:  90⁰C
Minimum Operating Temperature:  -55⁰C

Availability:

1,557 in stock

Documents:   Drawing
