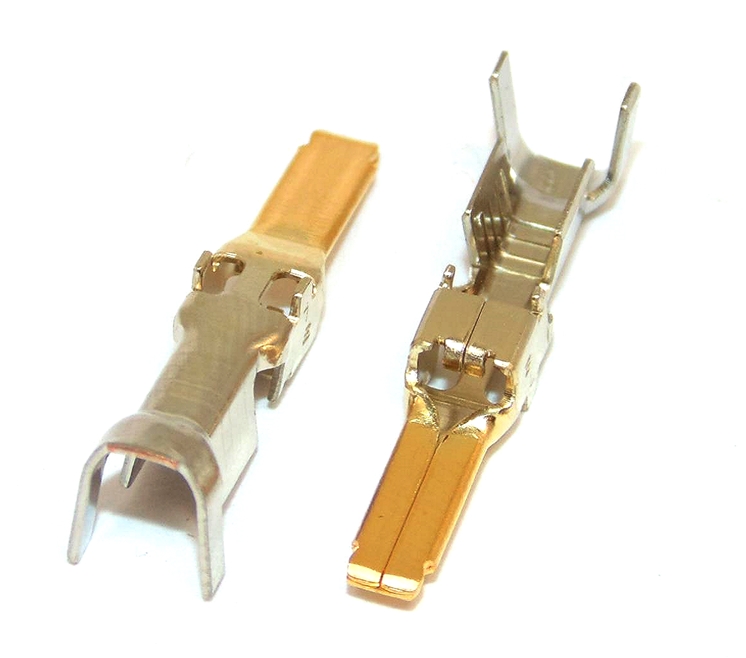

TE Connectivity Dynamic 4000 Series Male 14-12 Awg

Model:  FH66-17475002-T
Part Number:  1747500-2
Brand:  TE Connectivity
Product Range:  Dynamic 4000
Gender:  Male
Wire Size (min):  2.08mm²
Wire Size (max):  3.62mm²
Wire Size (awg):  14-12 Awg
Contact Material:  Copper Alloy
Contact Plating:  Gold
Termination Method:  Crimp
Terminal Shape:  Flat
Current Rating:  24A
Maximum Operating Temperature:  105⁰C
Minimum Operating Temperature:  -55⁰C
Wire Insulation Diameter:  2.9-4.1mm

Availability:

25 in stock

Documents:  Drawing
