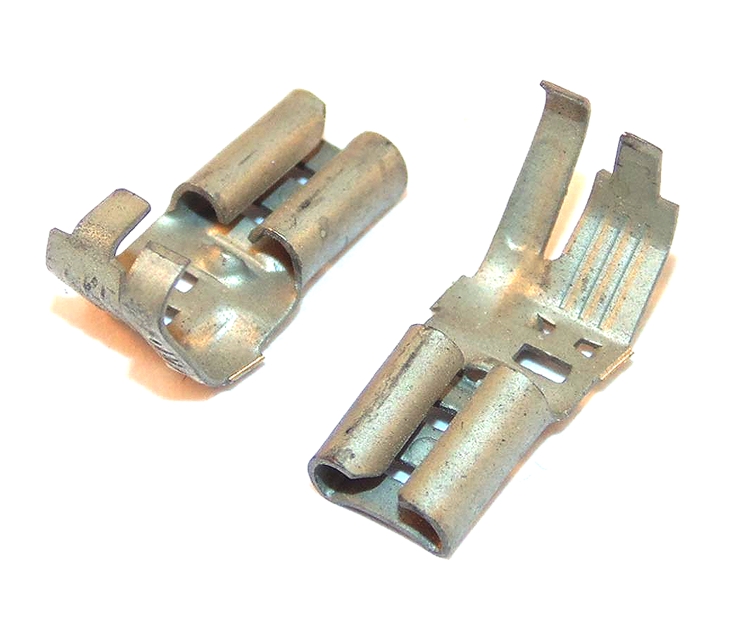

TE Connectivity Fastin/Faston Flag 4.8mm(187) Female 20-15 Awg

Model:  FR09-1506992-T
Part Number:  150699-2
Brand:  TE Connectivity
Product Range:  Fastin/Faston
Gender:  Female
Sealed/Unsealed:  Unsealed
Wire Size (min):  0.51mm²
Wire Size (max):  1.65mm²
Wire Size (awg):  20-15 Awg
Contact Material:  Brass
Contact Plating:  Tin
Termination Method:  Crimp
Terminal Shape:  Flag
Maximum Operating Temperature:  110⁰C
Minimum Operating Temperature:  -40⁰C
Tab Width:  4.8mm(187)

Availability:

600 in stock

Documents:   Drawing
