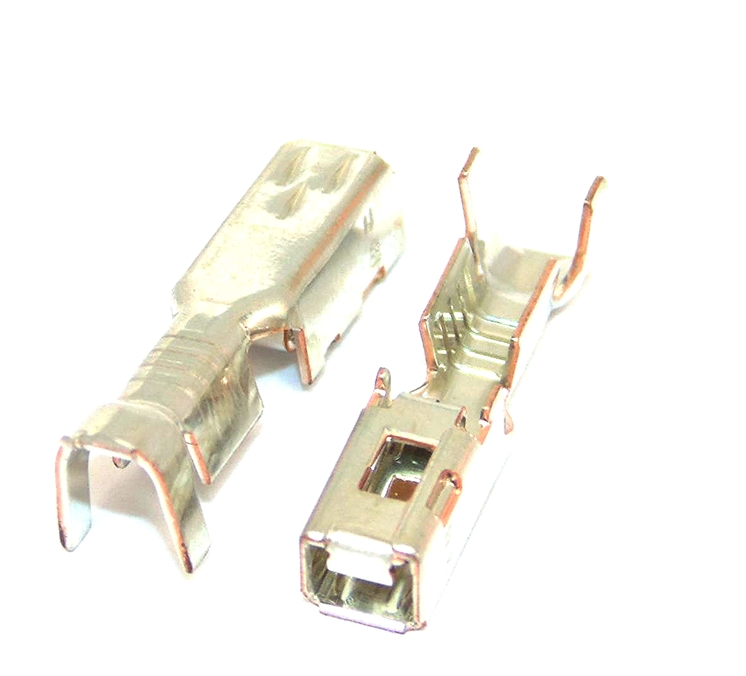

TE Connectivity Grace Inertia 6.2 Female 16-14 Awg

Model:  FH45-17469711-T
Part Number:  1746971-1
Brand:  TE Connectivity
Product Range:  Grace Inertia
Gender:  Female
Wire Size (min):  1.31mm²
Wire Size (max):  2.18mm²
Wire Size (awg):  16-14 awg
Contact Material:  Copper Alloy
Contact Plating:  Tin
Termination Method:  Crimp
Terminal Shape:  Receptical
Current Rating:  15A
Maximum Operating Temperature:  105⁰C
Minimum Operating Temperature:  -40⁰C
Wire Insulation Diameter:  2-3.75mm
Tab Width:  6.2mm

Availability:

45 in stock

Documents:  Drawing
