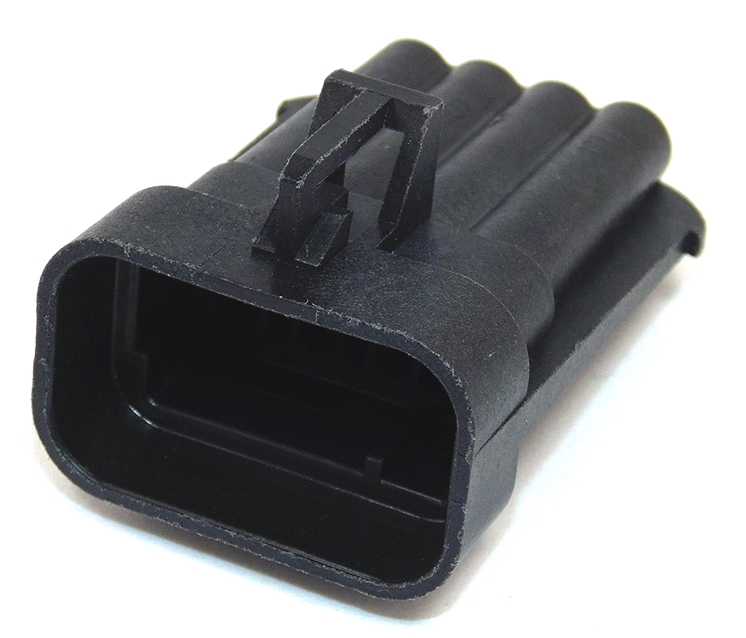

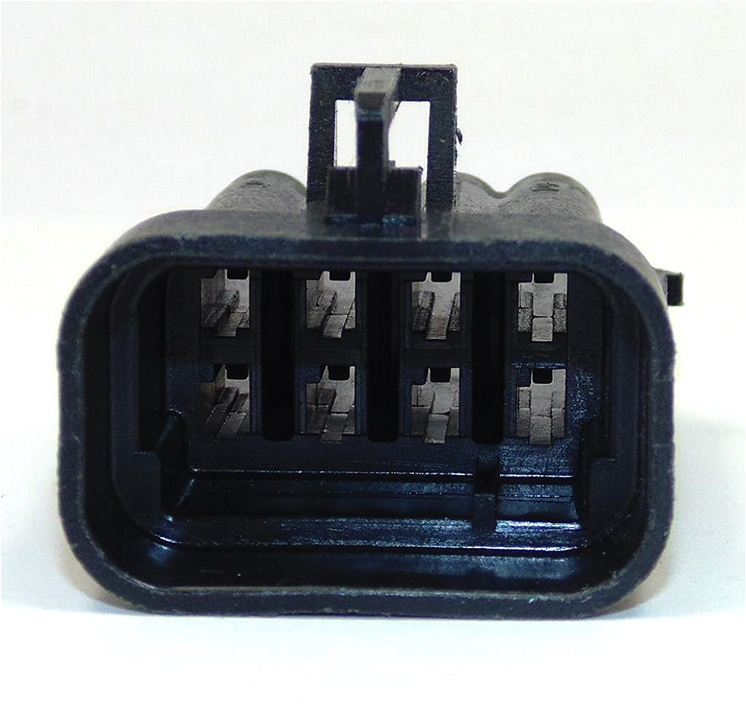

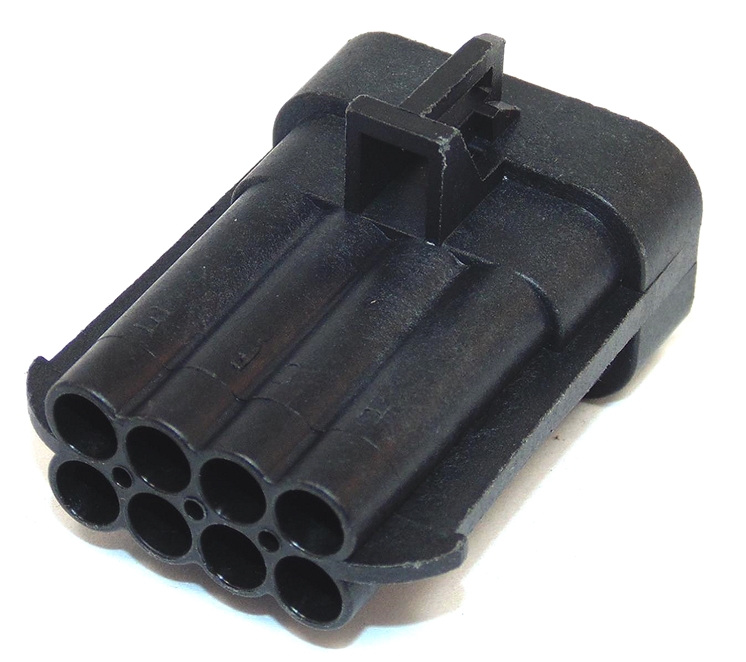

8 Way Delphi Metri-Pack 150 Connector Male Black

8 Way Delphi Metri-Pack 150 Connector Male Black
Zoom  Zoom
8 Way Delphi Metri-Pack 150 Connector Male Black8 Way Delphi Metri-Pack 150 Connector Male Black8 Way Delphi Metri-Pack 150 Connector Male Black
Our Price:  £1.16(Exc. 20% VAT)
+

Model:  FI19-12047931-H
Part Number:  12047931
Brand:  Delphi (Aptiv)
Product Range:  Metri-Pack 150
Number of Positions:  8
Number of Rows:  2
Gender (terminal):  Male
Colour:  Black
Sealed/Unsealed:  Sealed
Longest Dimension (connector face):  32.2mm
Terminal Shape:  Pin
Housing Material:  PBT
Current Rating:  14A
Maximum Operating Temperature:  125⁰C
Minimum Operating Temperature:  -40⁰C

Availability:

102 in stock

102 in stock



Pricing

1-49 £1.16
50-99 £0.93
100-499 £0.81
500+ £0.58













Documents:  Drawing


.
