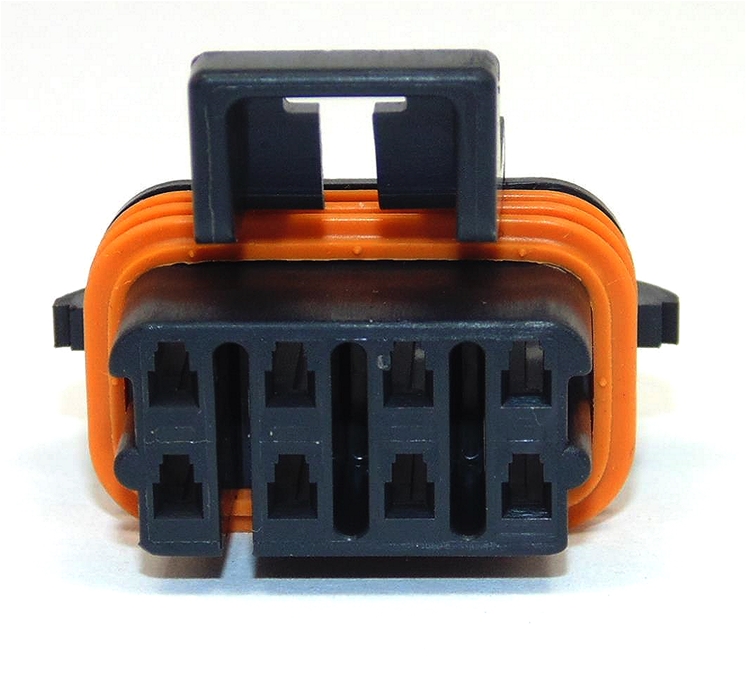

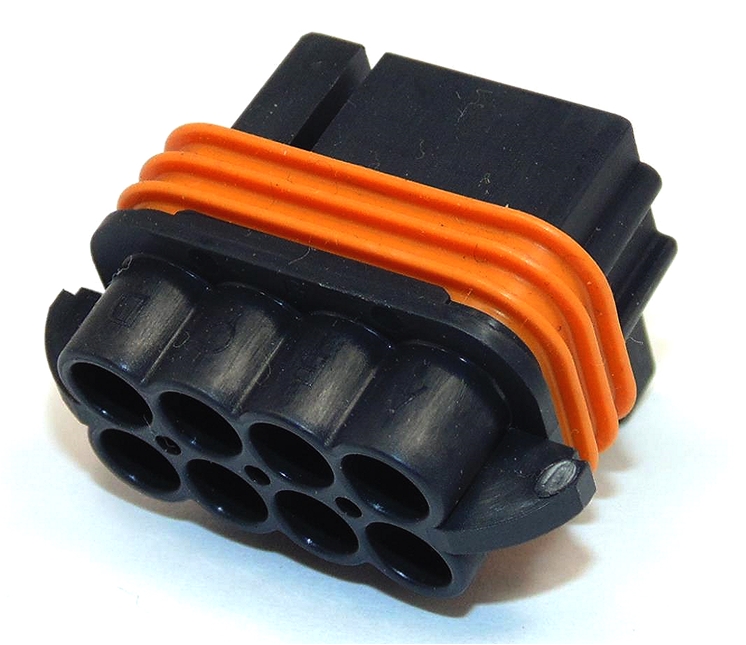

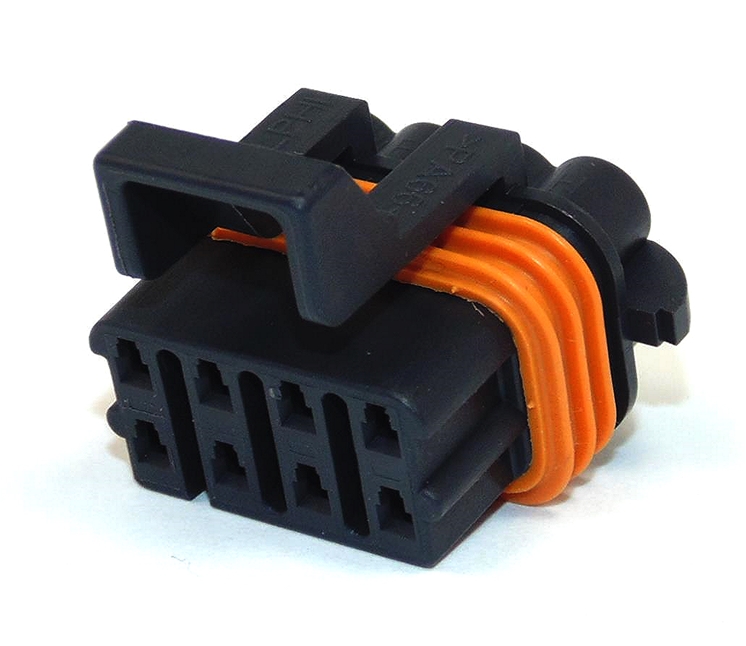

8 Way Delphi Metri-Pack 150 Sealed Female Black

8 Way Delphi Metri-Pack 150 Sealed Female Black
Zoom  Zoom
8 Way Delphi Metri-Pack 150 Sealed Female Black8 Way Delphi Metri-Pack 150 Sealed Female Black8 Way Delphi Metri-Pack 150 Sealed Female Black
Our Price:  £1.78(Exc. 20% VAT)
+

Model:  FI23-12047937-H
Part Number:  12047937
Brand:  Delphi (Aptiv)
Product Range:  Metri-Pack 150
Number of Positions:  8
Number of Rows:  2
Gender (terminal):  Female
Colour:  Black
Sealed/Unsealed:  Sealed
Longest Dimension (connector face):  35.4mm
Terminal Shape:  Socket
Housing Material:  PA
Current Rating:  14A
Maximum Operating Temperature:  125⁰C
Minimum Operating Temperature:  -40⁰C

Availability:

45 in stock

45 in stock



Pricing

1-99 £1.78
100-499 £1.42
500-999 £1.25
1000+ £1.07













Documents:  Drawing


.
